Golden Oil Refinery — VDU
Golden Oil Refinery — VDU: Structural design of the process-unit steel structures. Structural calculations and detailed drawings for storage-tank foundations.
- CLIENT
- SPEC EPC
- LOCATION
- Najaf, Iraq
- YEAR
- 2020
Engineering behind the structure.

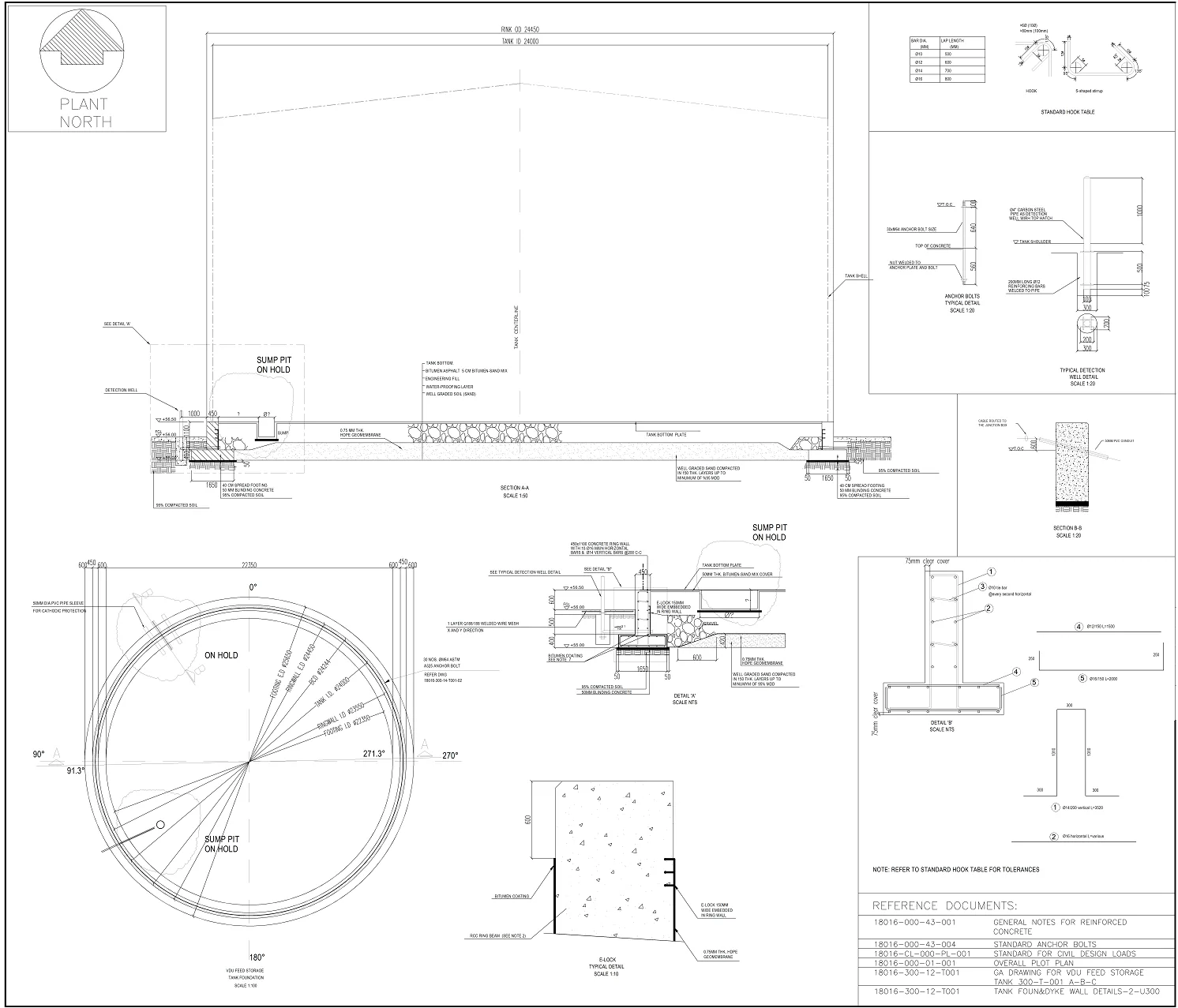

Process-unit steel structures and tank foundations form separate work packages. Key interfaces include steelwork and equipment, alongside foundation plans, sections and reinforcement details for the tanks.
Scope of work.
Structural design of the process-unit steel structures. Structural calculations and detailed drawings for storage-tank foundations.
PROJECT ARCHIVE

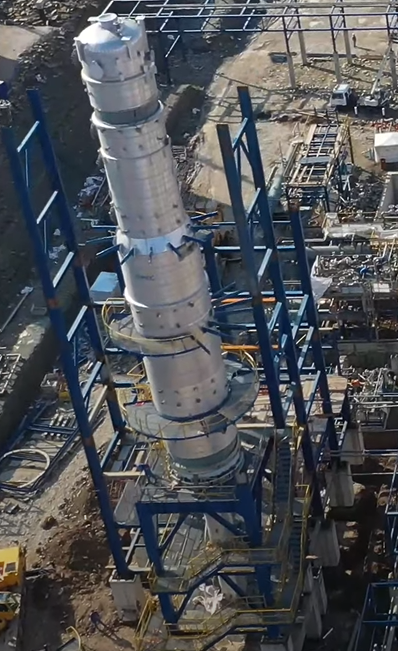

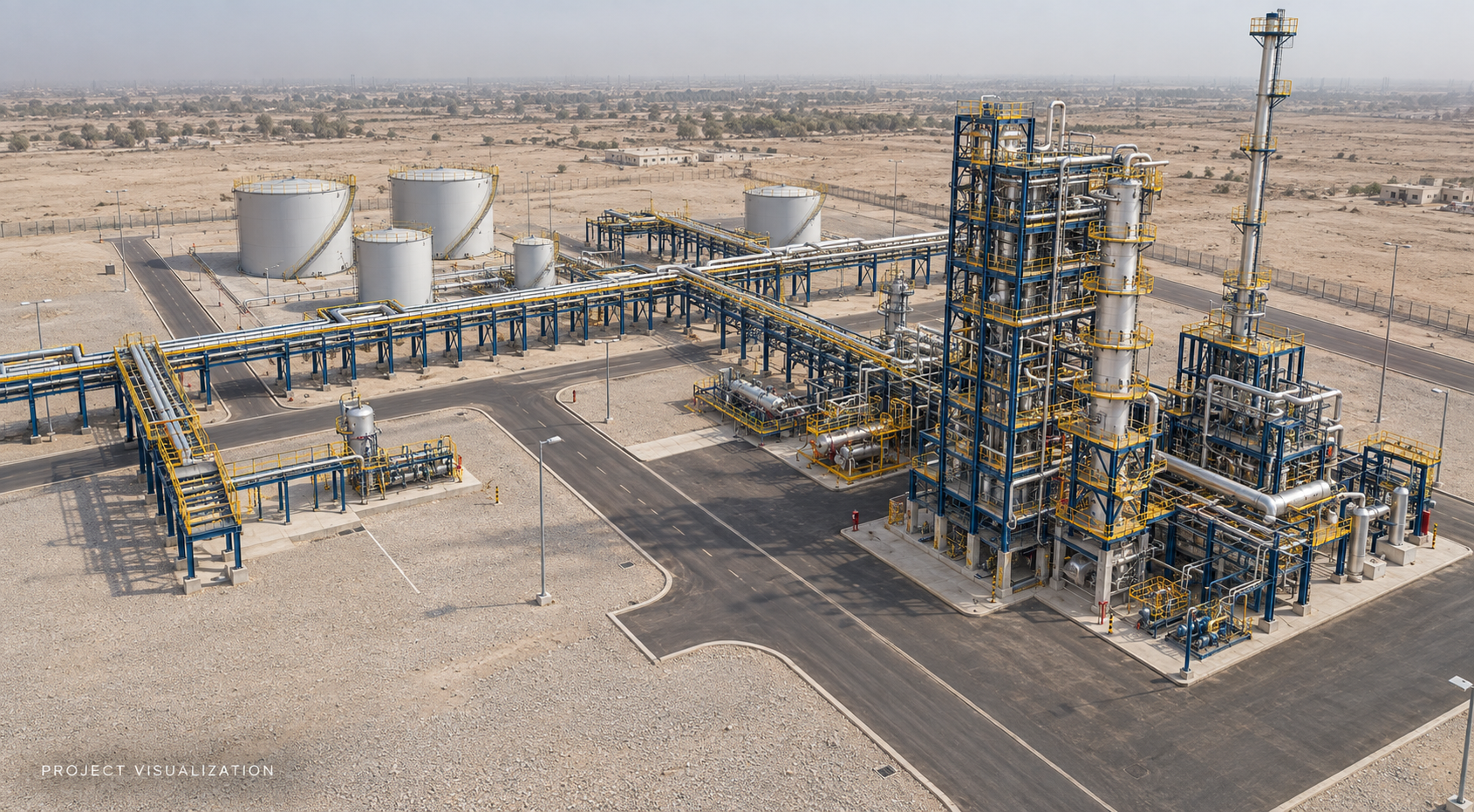

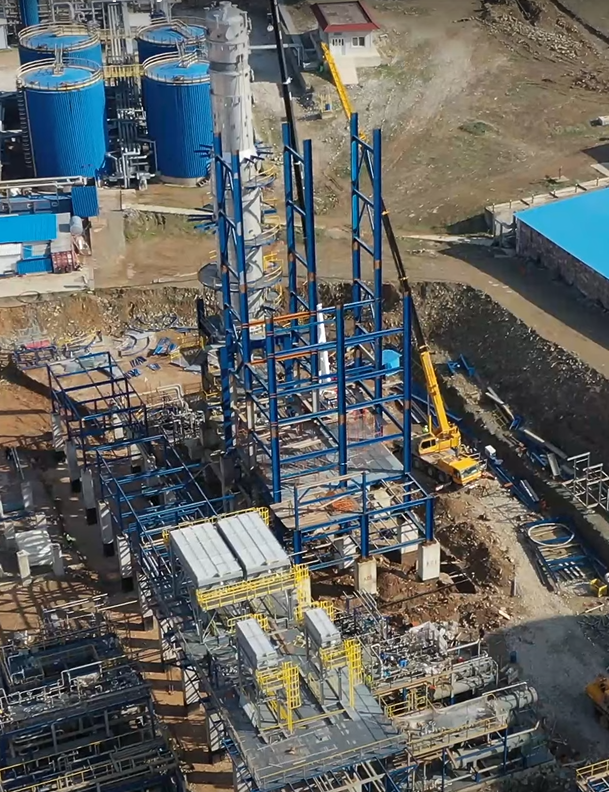

Site and design views.
Select an image to view it at full size.
